FIBER LASER CUTTING · SUPPORTED FROM BC

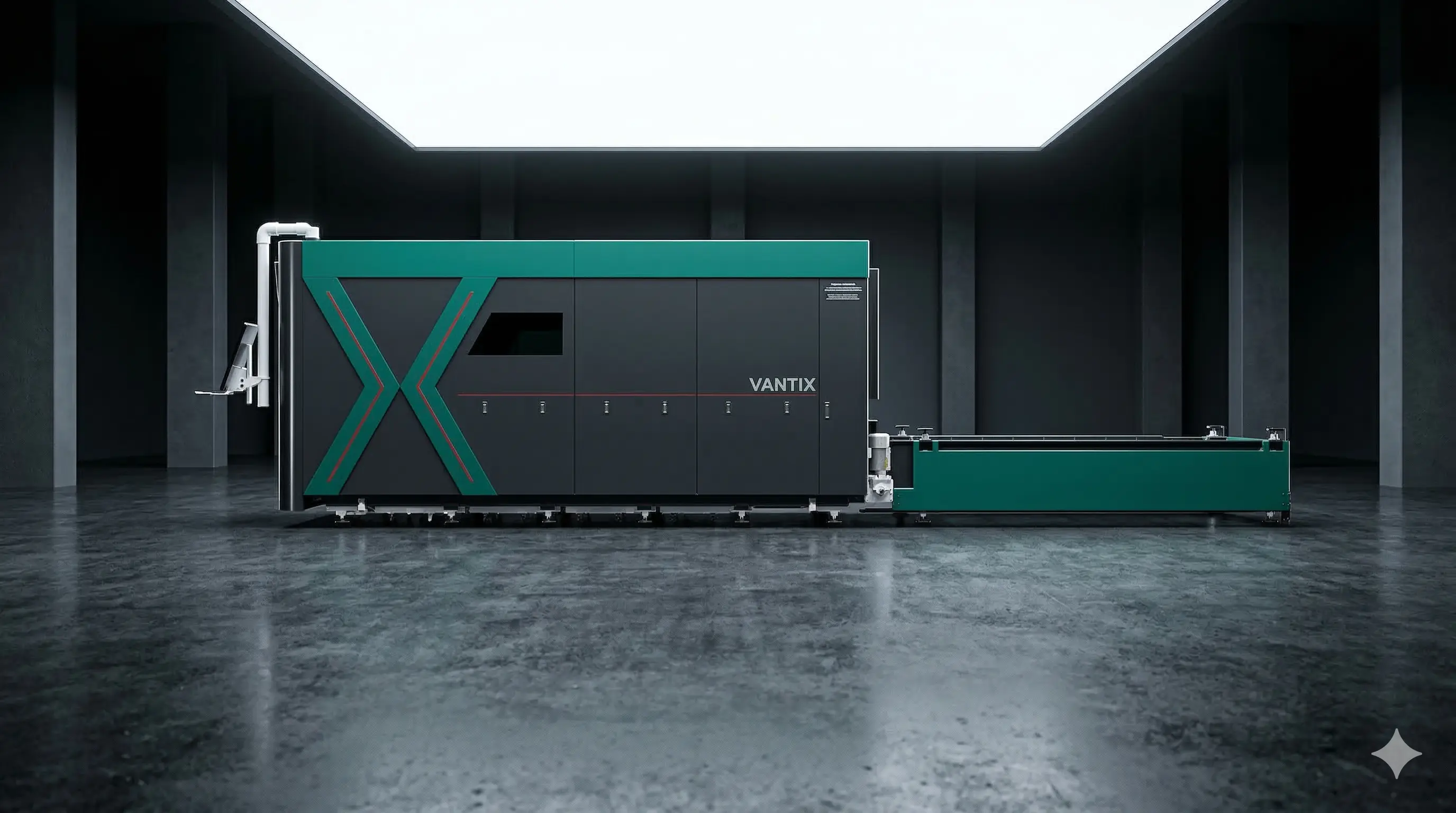

High-Power Fiber Laser Cutting Machines: 3 to 60 kW Systems

Name: Vantix Fiber Laser Cutting Machines
Brand: Vantix
Availability: InStock

Up to 80% faster than plasma. Up to 600% faster than CNC waterjet. BC-based engineers who answer when you call.

Precision. Speed. Local accountability.

Book a Cutting Demo

Request a Quote

Why Canadian Manufacturers Choose Vantix Fiber Lasers

That aging plasma cutter or legacy laser is holding you back. Longer cycle times. Higher energy bills. Parts that take weeks to arrive from overseas.
‍
You're losing bids to competitors with faster equipment.

Vantix changes the equation.

Our 3 kW to 60 kW fiber laser systems (12 kW and 20 kW are the most popular configurations) cut steel, stainless, aluminum, copper, brass and titanium at speeds your old equipment can't match. When you need support, you won't wait for an overseas call centre. Our BC-based team responds in hours, not weeks.

Enterprise capability. Local partnership.

System Capabilities at a Glance

Specification

Range / Capacity

Laser Power

3 / 6 / 10 / 12 / 20 / 30 / 40 / 60 kW

Cutting Area (Standard)

5 ft × 10 ft (1.5 m × 3 m)

Cutting Area (Configurable)

Up to 12 ft × 60 ft

Max Steel Thickness

Up to 5 in (127 mm) @ 60 kW

Max Stainless Thickness

Up to 3.5 in (89 mm) @ 60 kW

Max Aluminum Thickness

Up to 2.5 in (64 mm) @ 60 kW

Positioning Accuracy

± 0.03 mm

Max Positioning Speed

450 ft/min (140 m/min)

Materials

Steel, stainless, aluminum, copper, brass, titanium

Certification

CSA Models

All three maximum thicknesses are published at 60 kW. Vantix publishes no thickness figures below 60 kW; do not read these numbers down to a lower-power machine.Full chart: fiber laser thickness chart.

METAL LASER CUTTING MACHINE

Industrial Metal Laser Cutting Machines, Not Desktop Engravers

Search for a metal laser cutting machine and most of what you'll find is desktop engraving hardware: sub-kilowatt diode machines built to mark or slice thin sheet on a hobby bench. If your work is production metal fabrication, that class of machine is not the answer, and neither is a USD-priced factory listing with no Canadian support behind it. An industrial metal laser cutting machine is a different tool in three measurable ways:

If you're comparing cutting technologies rather than machine classes, start with plasma cutter vs laser cutter and waterjet vs laser cutting.

01 · Power that cuts plate, not foil

Vantix fiber laser cutting systems run from 3 kW to 60 kW. At 60 kW the platform cuts steel up to 5 in (127 mm), stainless up to 3.5 in (89 mm) and aluminum up to 2.5 in (64 mm). Those are published spec-sheet figures at 60 kW, not marketing estimates, and they only apply at 60 kW.

02 · A machine bed built for metal

The working area starts at 5 ft × 10 ft and configures up to 12 ft × 60 ft, on a 12 mm welded steel bed that is stress-relieved and FEA-checked, with YASKAWA servo motion and ± 0.03 mm positioning accuracy. Materials: steel, stainless, aluminum, copper, brass and titanium.

03 · Canadian support, CAD numbers

Vantix machines are sold, installed, trained and serviced from Lumby, BC, with a 1-year spare parts kit stocked in BC, a 24/7 Canadian hotline and 48-hour on-site response across Western Canada. CSA Models. You quote in Canadian dollars with a Canadian company.

For what systems cost, see what fiber lasers cost in Canada.

Custom Configuration

Built for Your Workflow, Not a Generic Factory

One-size-fits-all doesn't fit your shop.

Vantix systems are configured to your specific requirements. Need an oversized cutting area for large plate work? We build it. Require integration with your existing automation? Our engineers design for it.

Customization Options:

Cutting bed sizes from the 5 ft × 10 ft standard up to 12 ft × 60 ft
Enclosure configurations: full cover or open-table designs
Automation integration: pallet changers, loading systems
Material handling configured for your workflow
Software compatibility: DWG, DXF and industry-standard CAD/CAM

Your specs. Your configuration. Your advantage.

Discuss Your Requirements

What's Included

What's Included: The Vantix Full-Stack Bundle

When you invest in a Vantix system, you get more than a machine. You get a production partnership.

2-Year Extended Warranty

Standard coverage included

5-Day On-Site Training

Your operators learn from our engineers, on your floor

1-Year Spare Parts Kit

Critical components stocked in BC, not overseas

24/7 Canadian Support

When you need help, you get it

Installation & Commissioning

We set it up. We make sure it runs.

Material Compatibility

Steel

Cut up to 5 in (127 mm) at 60 kW with clean edges and minimal dross. Ideal for structural components, brackets and heavy fabrication.

Stainless Steel

Process up to 3.5 in (89 mm) at 60 kW. Suits food equipment, architectural work and precision components.

Aluminum

Cut up to 2.5 in (64 mm) at 60 kW. Fiber lasers handle aluminum's reflectivity far better than CO2 platforms.

Copper & Brass

Supported cutting materials. Vantix publishes no maximum thickness for copper or brass; ask for configuration-specific documentation.

Titanium

Supported cutting material. No published maximum thickness; consult our engineers for your application.

Full published figures, with the 60 kW qualifier explained: what thickness a fiber laser can cut.

How This Cutting Platform Is Built

A fiber laser is only as good as the frame it sits on and the motion system that drives it. Low-price imports often cut corners here, and you pay for it in accuracy drift, unplanned downtime, and parts that don't arrive. Every Vantix cutting system is built on an industrial-grade foundation with named, serviceable components you can count on for the long haul.

Here's what's actually inside.

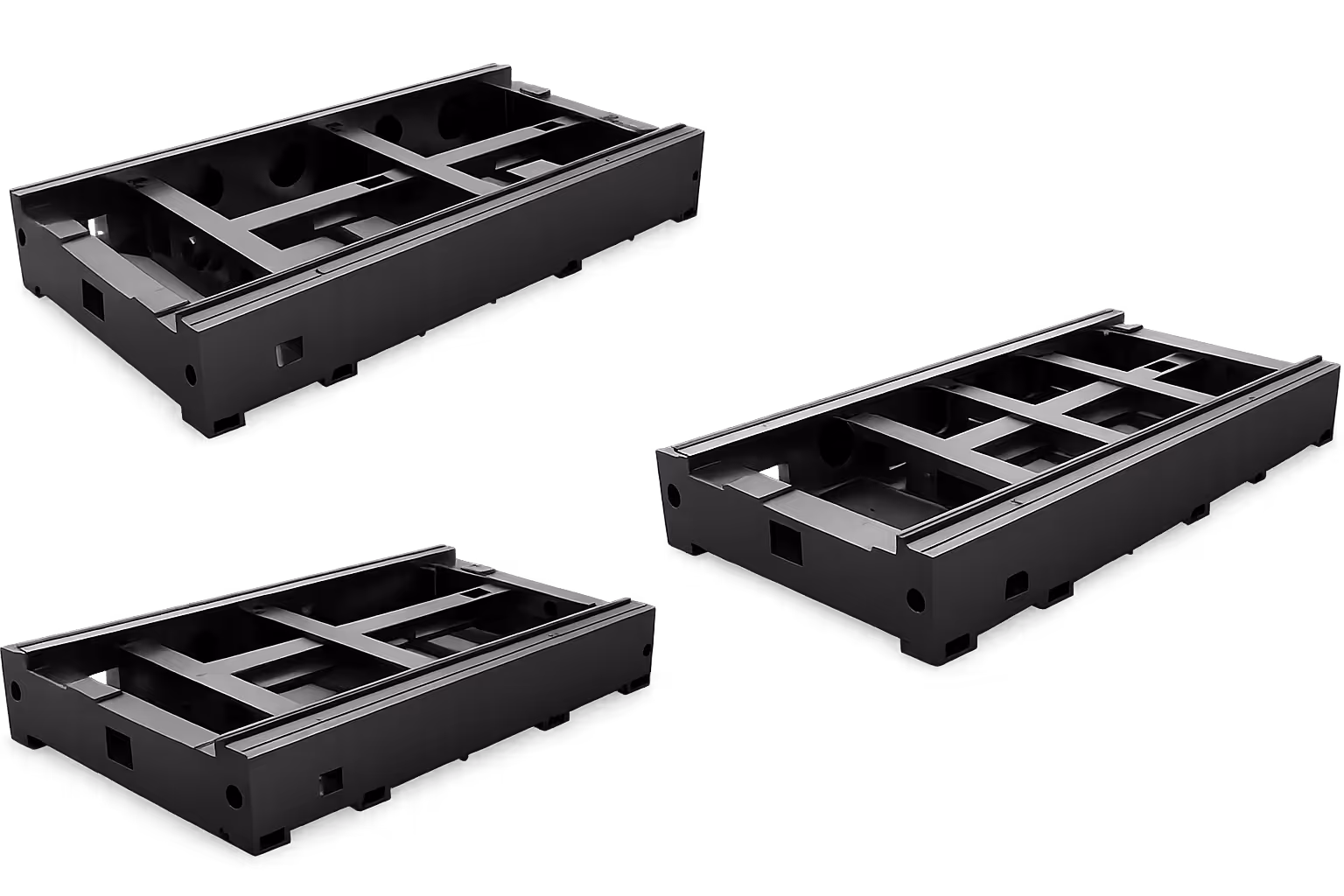

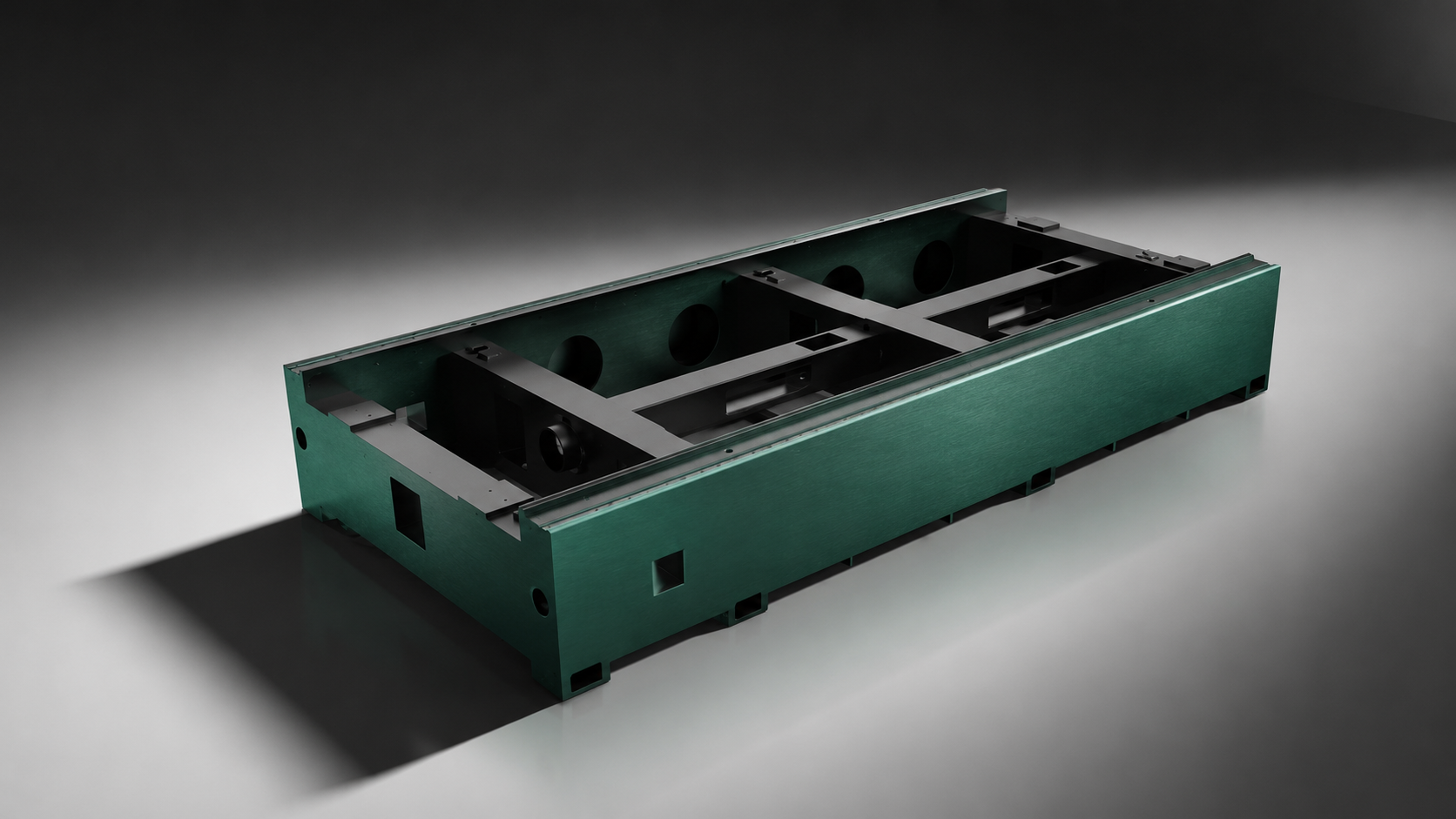

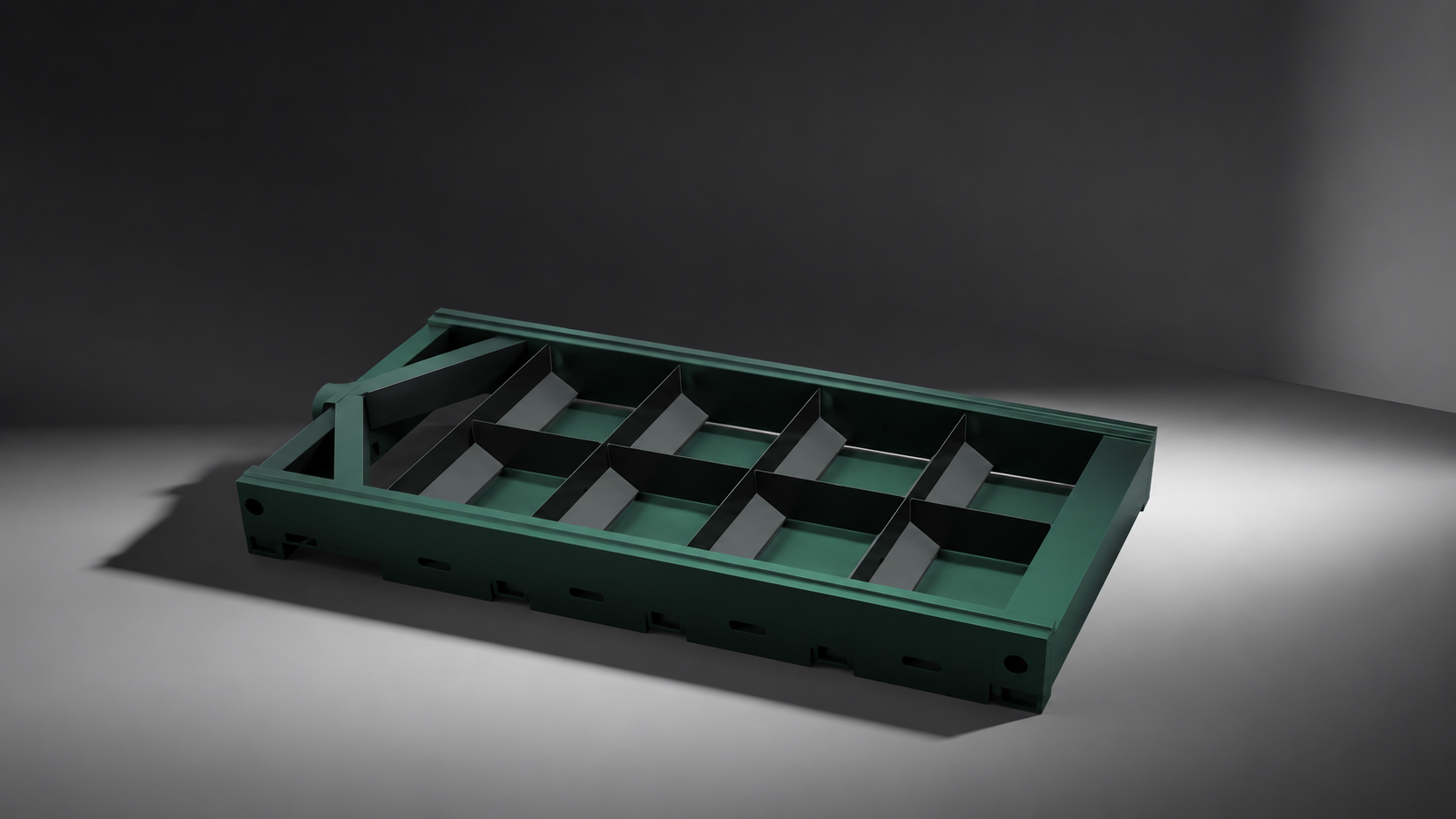

12 mm Welded Steel Machine Bed: Stress-Relieved for Long-Term Accuracy

The bed is the spine of the machine. It carries the full mass of the gantry, absorbs dynamic loads from high-speed motion, and holds geometric accuracy under continuous thermal and mechanical stress.

Vantix uses a ½" (12 mm) welded steel plate bed, designed using Finite Element Analysis (FEA) to optimize load distribution, vibration resistance, and torsional rigidity. After welding, the full bed goes through high-temperature stress-relief annealing, then is machined on large-format CNC equipment so every rail, gantry support, and worktable interface is finished to a unified reference surface.

Why it matters:

Cut quality holds over years of 3-shift production: no gradual drift, no creeping misalignment
Designed to outperform traditional cast iron beds on stiffness-to-weight and stress management
Fewer recalibrations over the machine's life = less production interruption

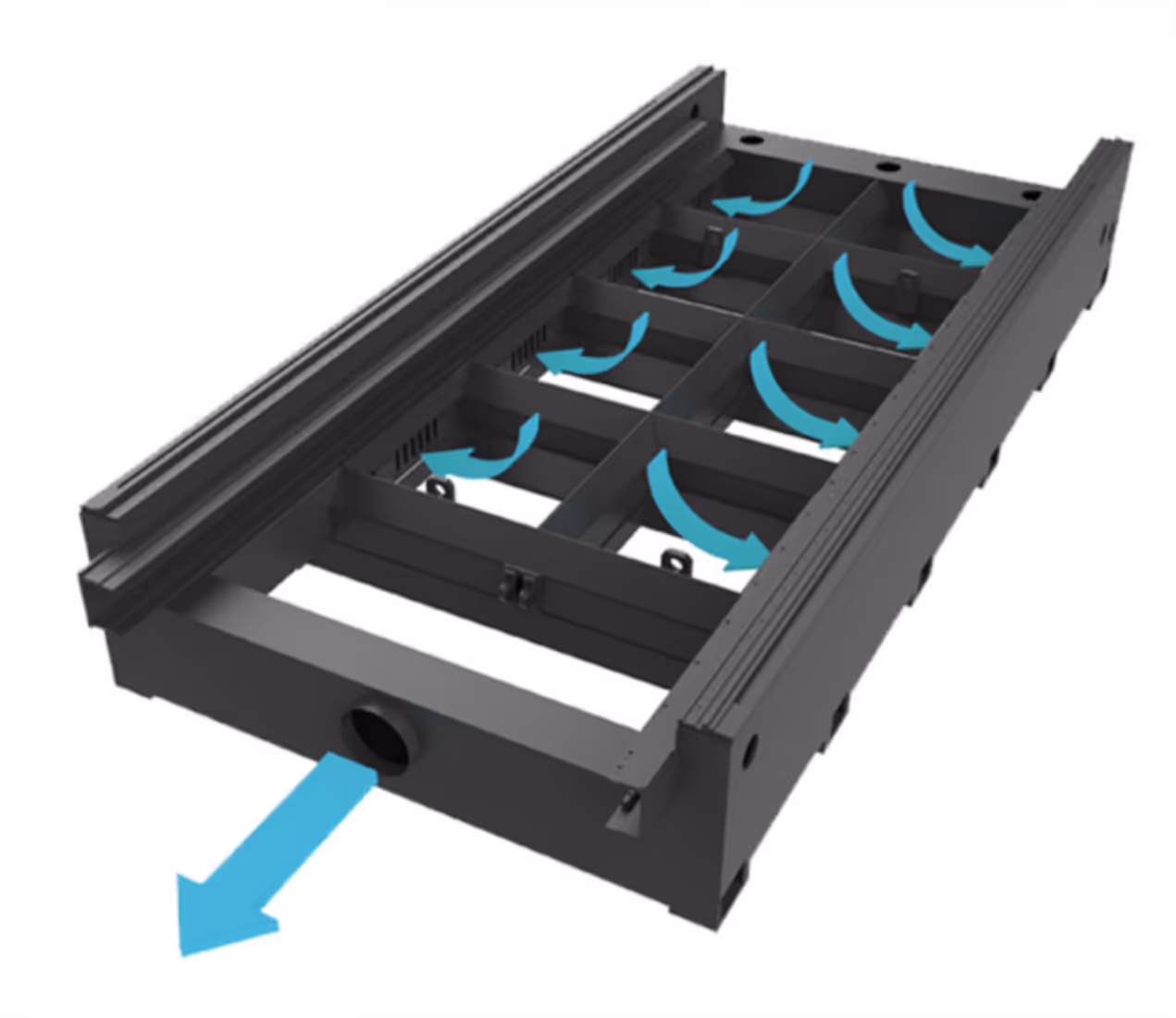

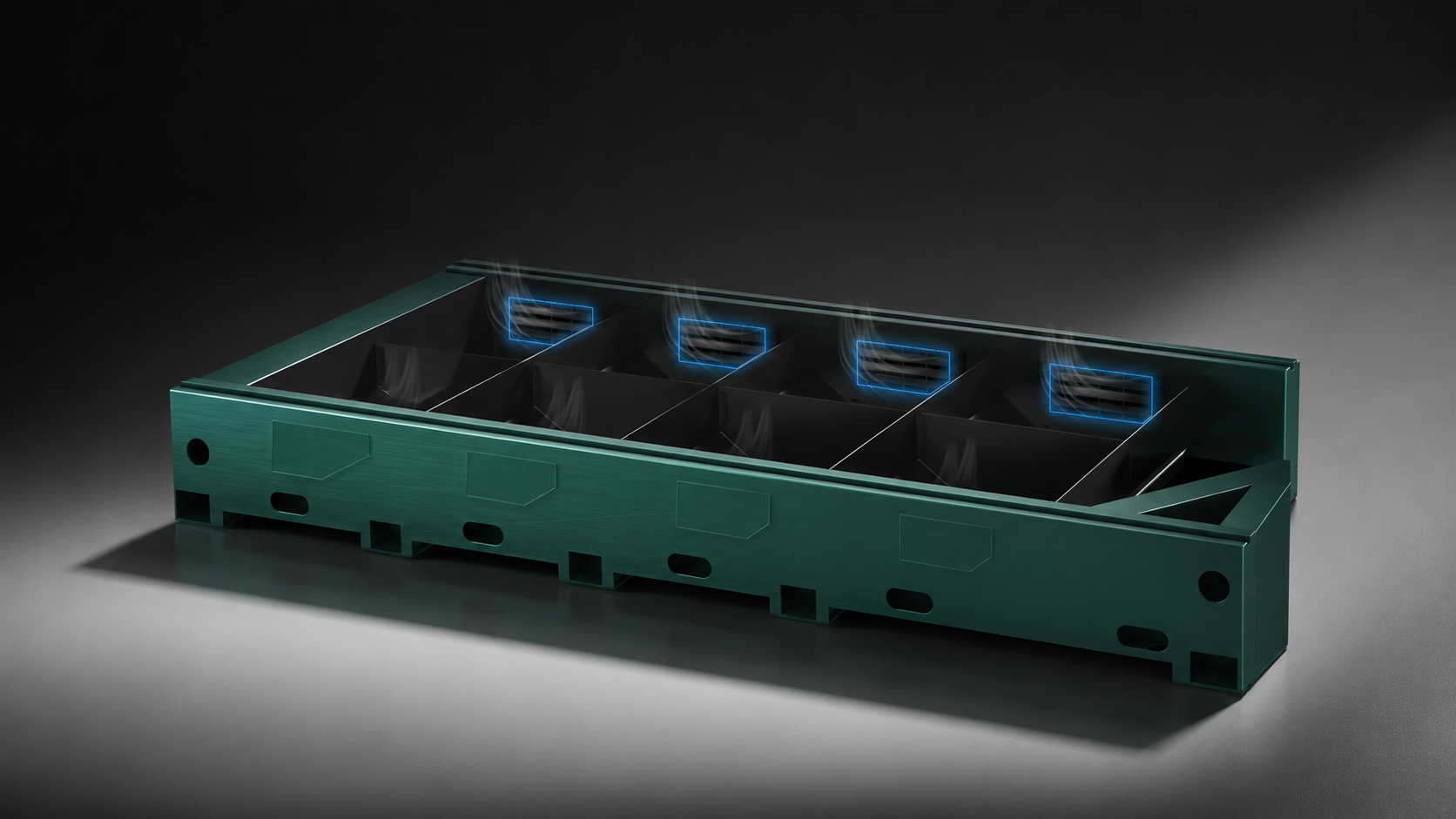

PLC-Zoned Exhaust System: Targeted Fume Extraction

Most import systems run a single full-bed exhaust at full load the entire time the machine is running. That's loud, expensive in energy, and poor at actually capturing smoke.

Vantix uses a PLC-controlled zoned exhaust. Solenoid dampers open and close in real time, synchronized with the cutting head position. Suction concentrates directly beneath the active cut. Internal airflow paths are CFD-optimized with angled baffles and flow straighteners to minimize turbulence.

Why it matters:

Cleaner smoke capture at the cutting point: better visibility, better shop air
Linear rails, racks, pinions, motors, and sensors stay cleaner → longer component life
Lower continuous power draw vs. full-bed extraction systems

YASKAWA Servo Motion Control: Global-Standard Drives

Vantix systems use YASKAWA high-performance servo motors, the same drive architecture used on top-tier CNC machinery worldwide. High-resolution encoders deliver fine motion feedback, adaptive tuning responds automatically to load changes, and built-in vibration suppression minimizes mechanical resonance during rapid acceleration.

Why it matters:

Clean edge quality on thin sheet AND thick plate: same machine, same precision
Accurate path tracking through tight corners and complex geometries
Industrial-grade reliability with sealed motor construction that resists metal dust and shop-floor contamination
Service parts and tuning support available globally, including from Canadian partners

Airtac 35 mm Linear Guide Rails: Black-Chrome Plated

The guide rails are what carry the gantry. Vantix uses Airtac black chrome-plated 35 mm rails, a deliberate upgrade over the lightly-plated rails shipped on lower-cost imports.

Why it matters:

Black chrome surface resists oxidation, humidity, and coolant mist found in real shops
Harder, denser finish limits micro-pitting and fine metal-dust adhesion
35 mm rail size delivers higher bending and torsional stiffness than smaller formats: cleaner cut edges during high-speed travel and acceleration
Improved load distribution → longer accuracy life

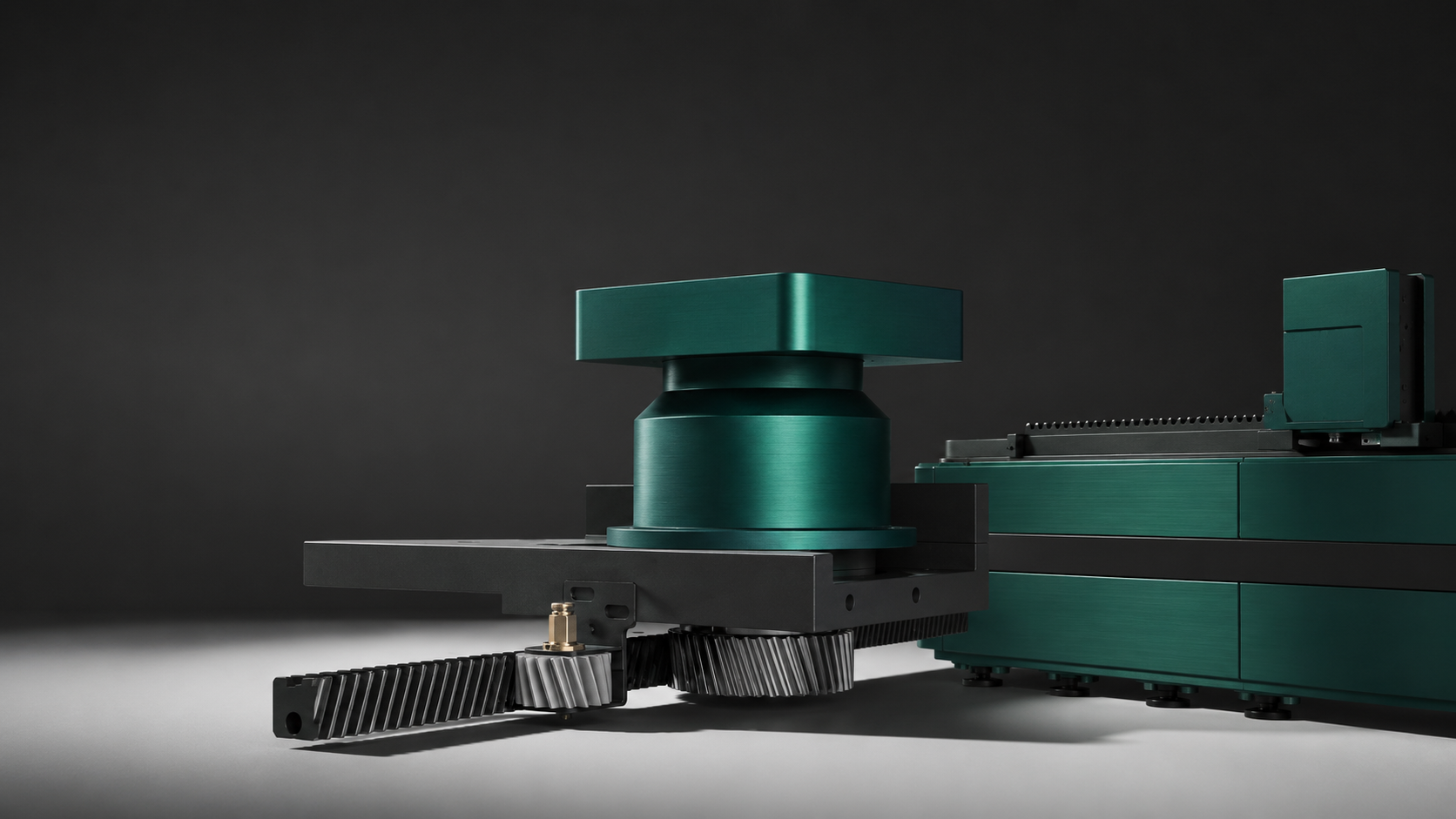

Continuous Felt-Wheel Rack & Pinion Lubrication

The rack and pinion drive gets saturated felt wheels that ride in constant contact with the gear surface. A controlled oil film stays on the rack teeth every cycle, not just when someone remembers to lubricate.

Why it matters:

No "forgot to grease it" risk during extended unattended operation
Lower drive load, less heat, smoother long-cycle cutting
Oil film doubles as a corrosion barrier against airborne metal particles
Fewer rack/pinion replacements over the life of the machine

Refractory Brick-Lined Scrap Collection Cart

Hot slag and freshly cut scrap can reach temperatures that warp standard steel cart frames within a few months of heavy production. Vantix carts are lined with refractory brick.

Why it matters:

Cart structure doesn't deform under repeated high-temp exposure
External surface temperatures stay substantially lower: real reduction in contact-burn risk during cart transport
Built for high-duty-cycle operation, not occasional cutting

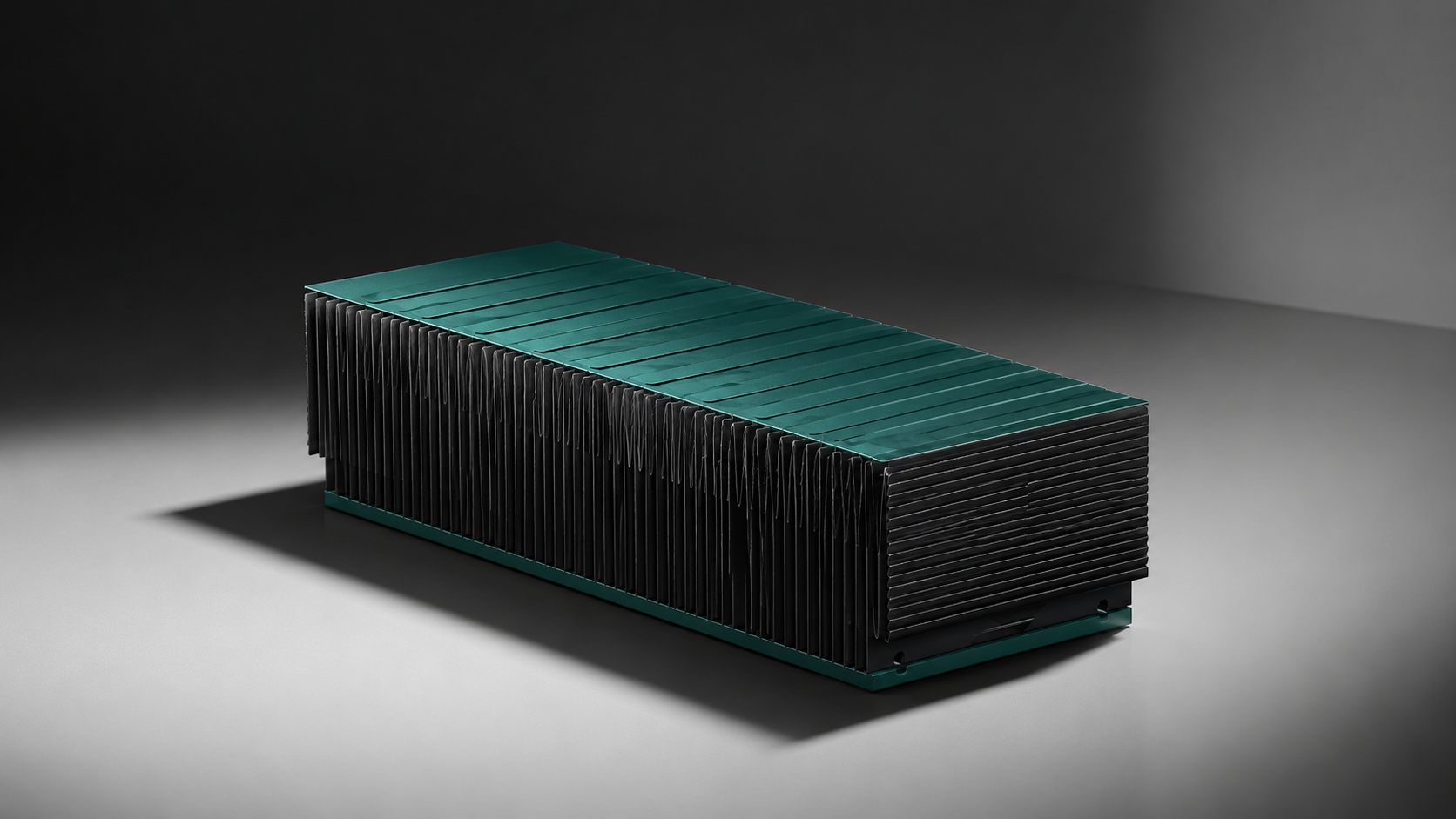

Fireproof Brick Protection: High-Heat Zones

High-heat zones inside the machine are shielded with heat-resistant refractory materials, specifically sized to tolerate sustained temperatures and repeated thermal cycling from molten slag and hot metal debris.

Why it matters:

Structural components and lubrication zones stay isolated from direct heat exposure
Added barrier against ignition risk in high-risk areas during thick-plate cutting
Longer machine life, fewer heat-related repairs

What This Means for Your Shop

You're not buying marketing claims. You're buying FEA-analyzed steel, named drive components, certified plating and engineered protection systems. Every one of these design decisions is a line item in a quote sheet we can walk you through.

Bring your drawings and your material. We'll show you the components running in our BC showroom, open the panels, and answer every engineering question directly.

Book an Engineering Walkthrough

Download the Full Spec Sheet

The Numbers That Matter

80%

Faster Cutting

Fiber laser technology outpaces plasma cutting dramatically. What took an hour now takes minutes.

Lower Energy Costs

→

Fiber lasers consume significantly less power than plasma alternatives. Your electricity bill notices the difference.

±0.03mm Precision

→

Repeat positioning accuracy that meets aerospace and automotive tolerances. Less rework. Less scrap. More profit.

Hours, Not Weeks

→

When you need support, our BC-based engineers respond the same day, not after a three-week wait for someone from overseas.

450 ft/min

→

Max positioning speed.

48 hrs

→

On-site response, Western Canada.

Applications & Industries

Metal Fabrication Shops

High-mix, low-volume job shops processing diverse materials and geometries. Quick changeovers and consistent quality.

Automotive Suppliers

Meet OEM tolerances and delivery windows. Process brackets, frames, and sub-assemblies at production speeds.

Aerospace Manufacturing

Tight tolerances for structural components. Documented precision for compliance requirements.

Heavy Equipment

Large-format cutting for construction, mining, and agricultural equipment components.

Vantix vs. The Alternatives

vs. TRUMPF

Vantix's own brochure puts its pricing at roughly 60% of TRUMPF's price, with comparable precision and no waiting for a tech to fly in from Germany. Where TRUMPF is genuinely the better buy, we say so: read the full comparison.

vs. Bodor & Import Brands

Lower upfront cost comes with hidden risks. Parts ship from overseas. Support tickets disappear into a queue. Vantix stocks parts in BC and names its components on every spec sheet.

vs. Used Equipment

New, warrantied, financed. Often cheaper per month than maintaining aging plasma or legacy lasers.

Detailed brand-by-brand comparisons, plus the full specification page for the sheet cutting platform:

FLC Fiber Laser Sheet Cutting System

Bed sizes, power levels and cut capacity for the sheet platform, on one specification page.

Vantix vs Bodor

The headline price is often lower. The landed cost, after freight, parts logistics and service calls, usually is not.

Vantix vs Trumpf

Total cost of ownership for Canadian fabricators, and the cases where Trumpf is the better buy.

Vantix vs Bystronic

How the two Canadian support models differ once the machine is on your floor.

Vantix vs Amada

Ecosystem depth weighed against Western Canadian proximity.

Vantix vs HSG Laser

Distributor structure, where the parts sit, and which components are named.

Vantix vs Accurl

Sticker price set against landed cost, itemised.

Vantix vs LVD

Integrated fabrication scope against local laser support, including LVD's Canadian agent structure.

See It Cut Before You Buy

Our Lumby, BC showroom has machines running and ready. Bring your materials. Watch them cut. Ask every question.

Demo options:

In-person showroom visit: see full-size systems in action
Remote video demo: live cutting demonstration via video call
Material sample testing: send us your parts, we'll cut and ship results

Seeing is believing.

Schedule Your Demo

Financing That Fits Your Cash Flow

A major capital purchase doesn't have to drain your operating account.

Financing options include:

Lease programs: preserve capital, predictable monthly payments
Finance-to-own: build equity while you produce

New, warrantied, financed. Often cheaper per month than maintaining aging equipment. Run your own numbers on the laser cutting machine ROI page, and see program structures on laser equipment financing.

Request a Quote

FAQ

Common Questions

Ready to See the Vantix Difference?

Your next production upgrade shouldn't come with overseas headaches. Book a demo at our BC showroom, or request a custom quote configured to your shop's needs. No pressure. No obligation. Just precision.

Book Your Showroom Demo

Request a Custom Quote
