Profile Laser Cutting Machines: Structural Processing Without Secondary Bottlenecks

Cut profiles and plate in one integrated system. Built for steel structure shops that need speed, consistency, and local support.

Book a Structural Demo

Request a Quote

Why Structural Fabricators Add a Dedicated Profile Line

Manual prep, secondary beveling, and fit-up rework kill schedule confidence. A dedicated profile laser platform removes those delays by combining profile cutting and angle-ready prep in one workflow.

System Capabilities

Dual-Station Processing

Process structural profiles and sheet material in a single integrated machine footprint.

Bevel Cutting to ±45°

Continuous ±45° bevel processing for weld-prep geometries and complex structural joints. Straight cuts, V-cuts, Y-cuts and weld-joint prep, direct from the machine.

Heavy-Duty Stability

High-rigidity welded base with stress-relief process to maintain alignment under continuous load.

Protected Motion Architecture

Side-mounted and shielded motion components reduce contamination risk and service interruptions.

Built for Real Structural Work

Long Material Stability

Multi-point clamping architecture improves rotational and positional consistency on long sections.

Dust and Slag Control

Zoned extraction and protective barriers reduce contamination in high-volume cutting environments.

Safer Operation

Integrated safety monitoring and light-curtain protection for active production floors.

PUBLISHED SPECIFICATIONS

The HPM Platform, as Published

These are the figures Vantix publishes for the HPM structural profile platform. Bring your sections and we will confirm the configuration against your parts.

Configuration

Dual-station platform

Front station

Structural profile: H-beam, I-beam, channel, angle

Rear station

Flat sheet / plate, synchronous processing

Cutting head

BLT442P + AB-axis

Bevel range

±45° continuous

Cut types

Straight · V-cut · Y-cut · weld-joint prep

Auto focus

Integrated, with zoom capability

Machine bed

Modular 20 ft sections, extendable up to 200 ft

Bed, rails, motion

Stress-relieved welded · side-mounted · IP67 (IEC 60529)

Light curtains

High-sensitivity safety, sign-off ready

Dust + workpiece

Zoned PLC extraction · active compensation

Warranty + training

2-year warranty · 5-day on-site training

Parts + support

1-year spares stocked in BC · 24/7 Canadian hotline

Service SLA

48-hour on-site, Western Canada

CSA Models. Full datasheet below; certification status for the exact configuration you are quoting is confirmed in writing.

Download the HPM Technical Datasheet

What You Can Produce

H-beam and I-beam joint geometry
Channel and angle processing
Structural connection plates
Multi-angle weld-prep edges
Repeatable fit-up-ready parts

The platform was built for the industries that punish equipment: structural steel for bridges and high-rise buildings, pipeline supports and modular skids, excavator arms and machine frames, mining buckets and wear plates, and hull sections in shipbuilding.

If you run a structural shop and are mapping the whole floor rather than one machine, start with our guide to structural steel fabrication equipment: what a laser changes in a structural workflow, what it does not touch, and which platform fits which bottleneck.

How This Structural Platform Is Built

Structural steel work punishes equipment. Heavy sections, long material, abrasive slag, high-volume production cycles — the machine that survives a structural shop is an engineered machine, not a repackaged sheet cutter. The Vantix HPM platform was built specifically for this work.

Here's what's inside.

Dual-Station Synchronous Processing

The HPM combines two machines into one footprint:

Front station: dedicated to profile cutting (angle steel, channel, structural sections)
Rear station: optimized for flat sheet cutting

One integrated system replaces separate profile + sheet machines.

Why it matters:

Capital cost drops: one platform, one floor space footprint
Material doesn't leave the work cell between profile prep and plate prep
Production flexibility across mixed-job schedules
Crossbeam span and gantry geometry are engineered to hold accuracy across both stations

Side-mounted Y-axis guide rail and rack shielded behind sheet metal covers

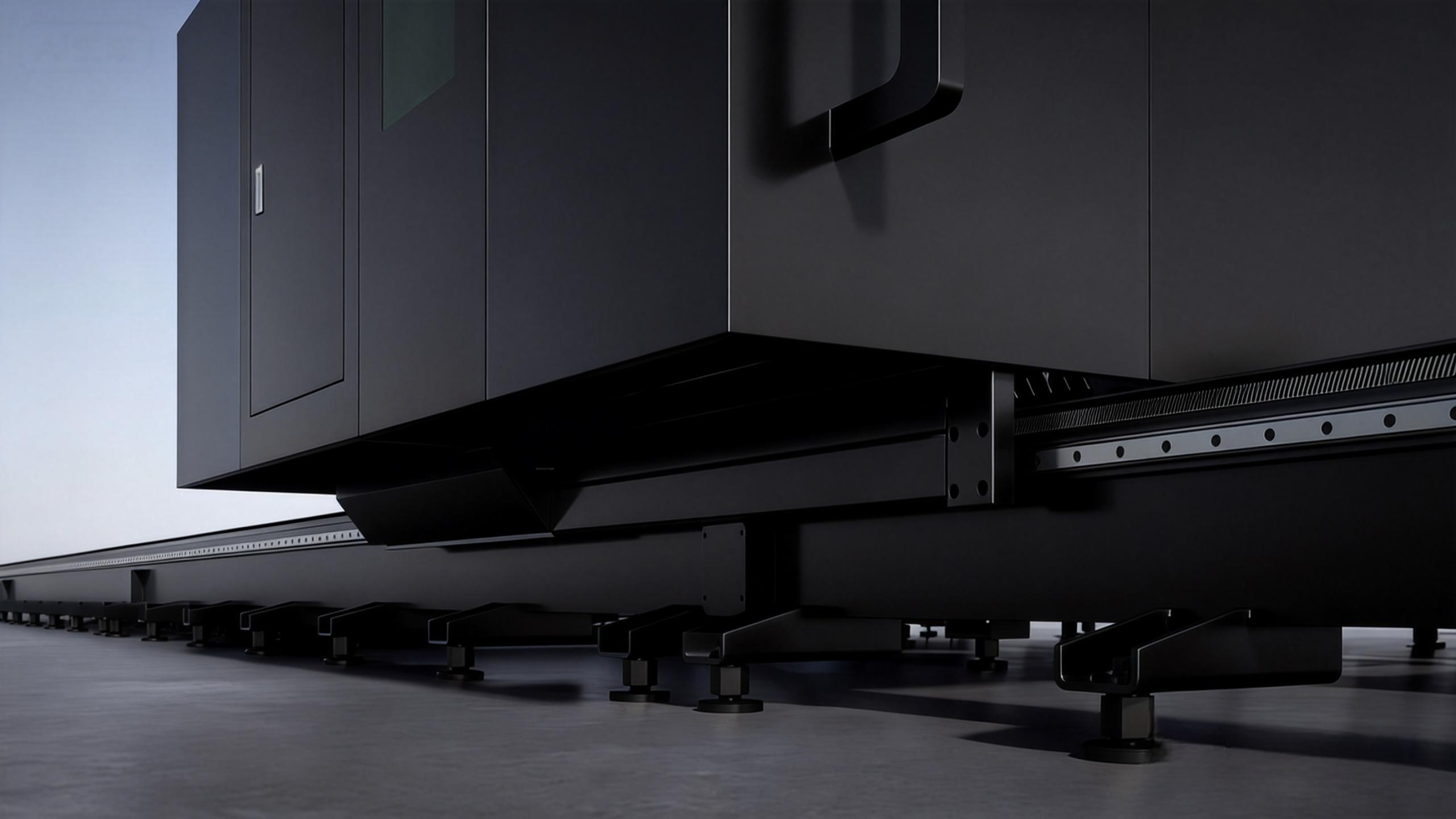

Side-Mounted Guide Rail & Rack Design

On a standard layout, the Y-axis guide rails and rack sit near the cutting zone, directly exposed to slag, impact damage from material handling, and airborne debris.

Vantix relocates them to the side of the machine, shielded behind dedicated sheet metal covers.

Why it matters:

Forklift strikes and dropped workpieces don't take out your Y-axis
Slag and dust stay off the rolling and meshing surfaces
Lubrication lasts longer, service intervals stretch out
Clean footprint, better service access

Welded stress-relieved machine bed of the HPM platform during installation

High-Strength Welded + Stress-Relieved Machine Bed

Heavy welded steel base with uniform welds throughout. After welding, the bed undergoes stress-relief annealing, dramatically reducing internal residual stress introduced during fabrication.

Why it matters:

Gradual misalignment (the #1 source of creeping scrap rates on older machines) is engineered out
Recalibration frequency drops
Production efficiency stays high across the machine's service life

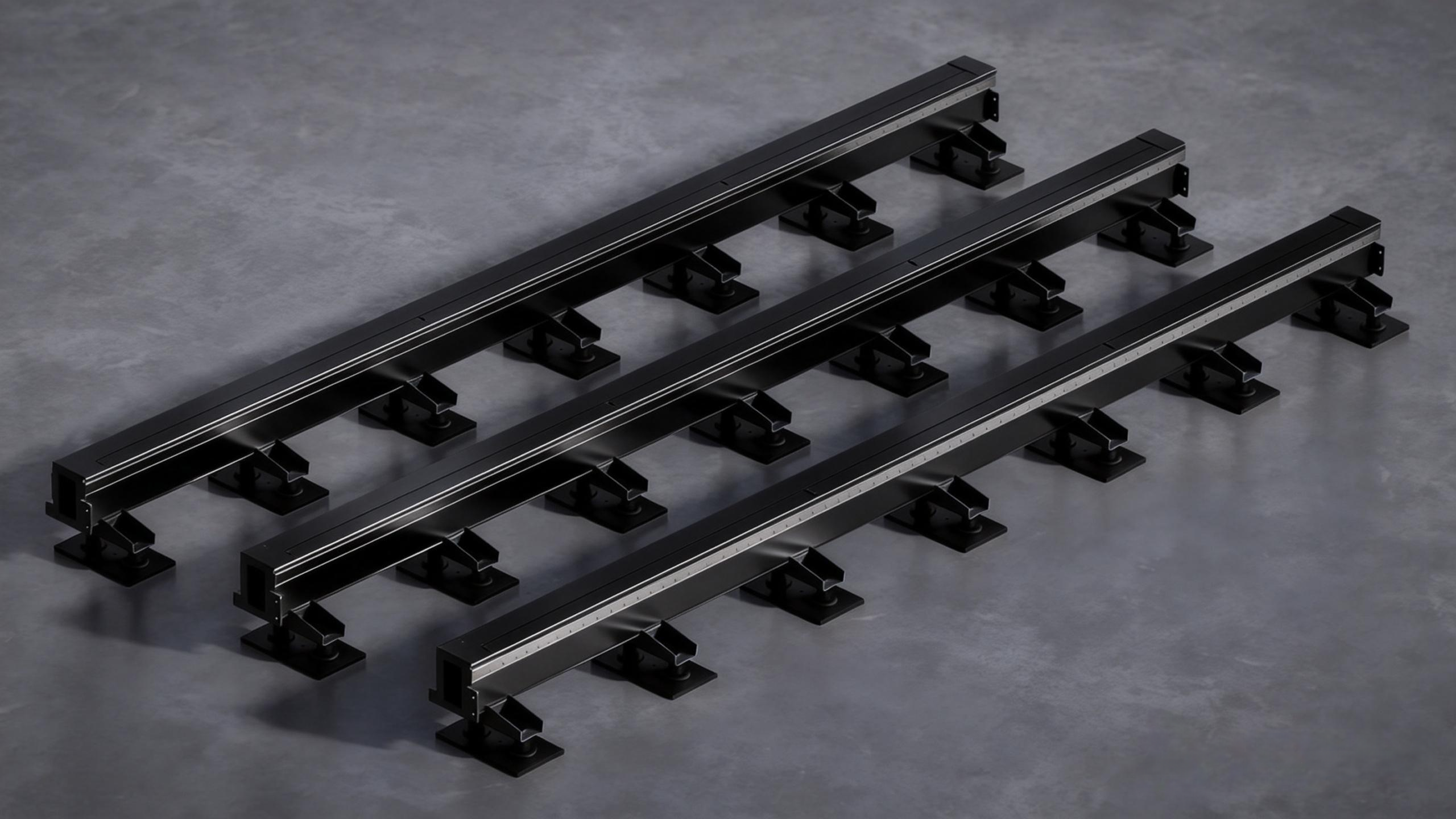

Modular Sectional Machine Base: 6-Meter Modules

The base ships in manageable sections (typical 6 m modules). Every section is machined with accurate reference interfaces so full-bed alignment locks in during on-site assembly. Beds run from 20 ft modular sections up to 200 ft.

Why it matters:

Fits through doors, fits on floors with load limits, fits around existing equipment
Individual sections can be serviced, accessed, or adjusted without disassembling the full bed
Localized maintenance = less downtime

BLT442P bevel cutting head with AB-axis mechanism cutting at 45 degrees

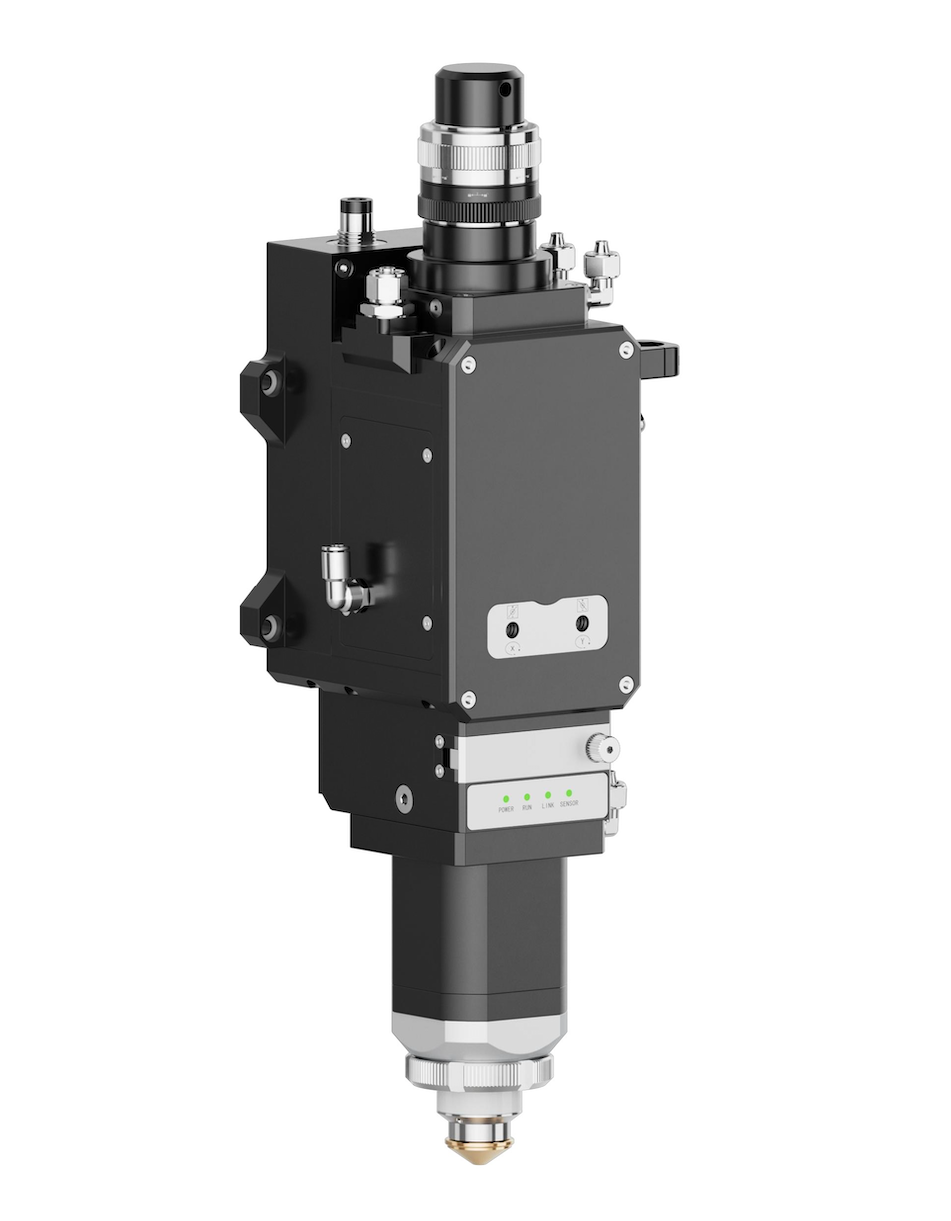

Bevel Cutting Head: BLT442P + AB Axis

The BLT442P bevel cutting head is equipped with an integrated AB-axis mechanism for precise multi-angle cutting, ±45° continuous.

Capabilities:

V-cuts, Y-cuts, and standard weld joint preps, direct from the machine
Synchronized AB-axis control holds accurate orientation throughout the cut
Smooth transitions between straight and angled cuts
Minimal burr, minimal heat-affected distortion

Why it matters:

Structural joints come off the machine ready for fit-up, no secondary beveling
Eliminates the grinder-bottleneck that kills throughput on heavy fabrication
Consistent edge geometry part-to-part → faster welding downstream

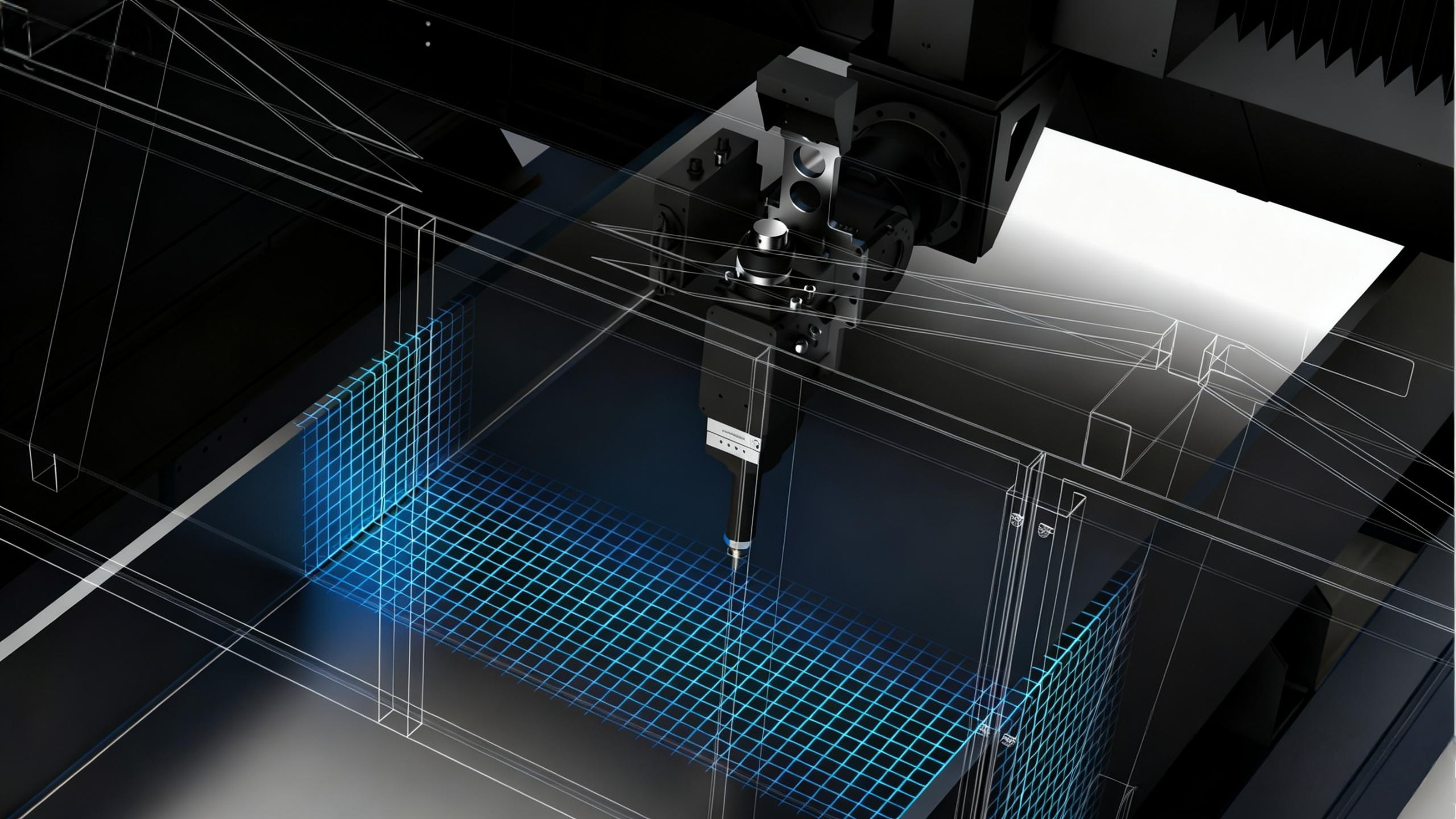

Workpiece Precision Compensation: Adaptive Path Control

Localized heat during laser cutting causes minor material expansion or deformation. Vantix systems correct the tool path in real time, compensating for thermal and geometric effects during processing.

Why it matters:

Dimensional accuracy holds across long cuts and complex profiles
Flange plates, web plates, and structural components come out consistent
Downstream fit-up is faster: less manual correction, less rework
Labor dependency on skilled finishing drops

Zoned dust collection ducting under the HPM cutting bed

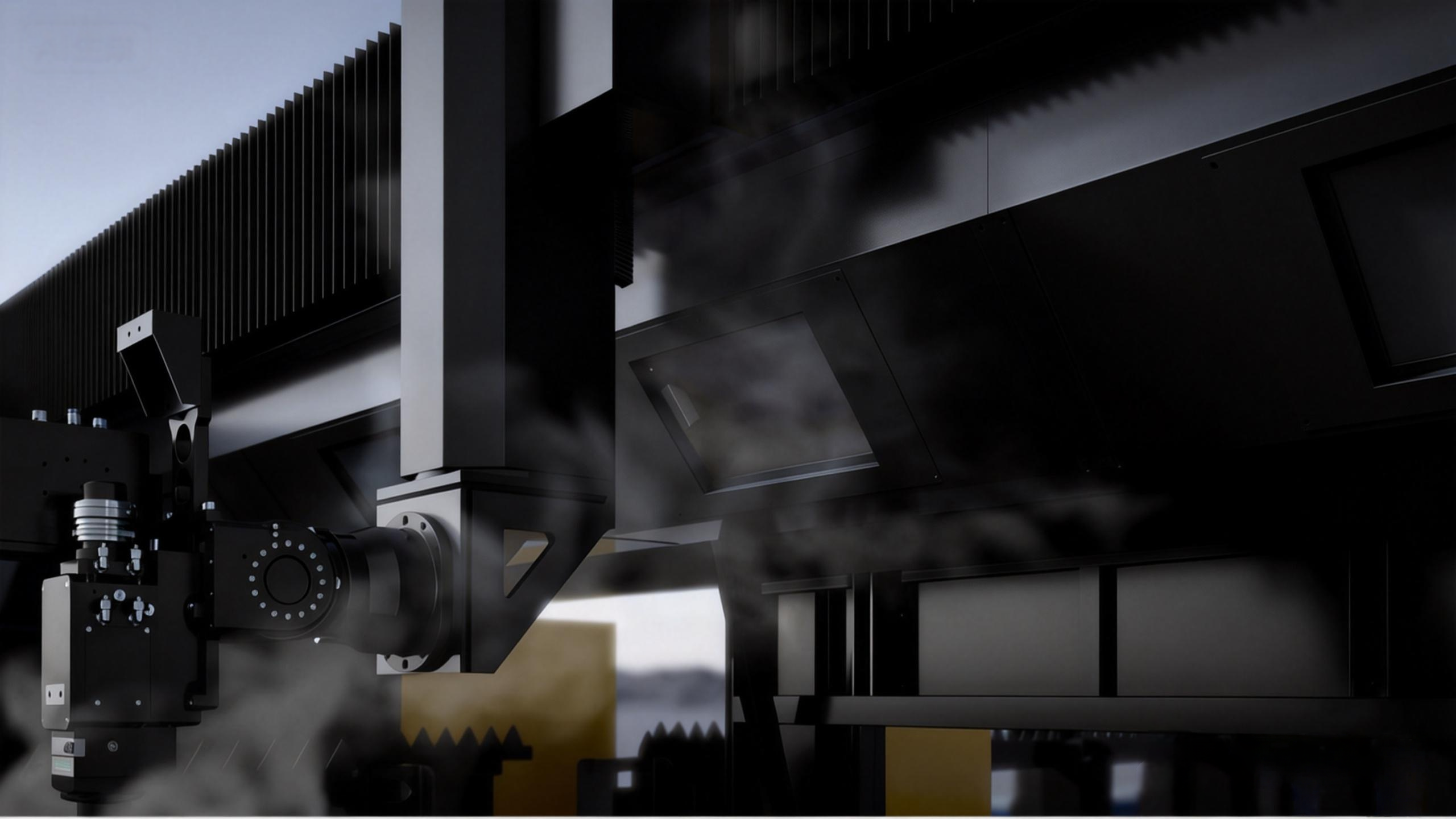

Zoned Dust Collection: Large-Diameter Ducting

Large-diameter air ducts combined with independently controlled extraction zones. The active zone tracks the cutting position; inactive zones stay closed.

Why it matters:

High-efficiency fume capture where you need it, not across the full bed
Lower airflow resistance → stable suction even during high-power cutting
Cleaner air in the cutting zone, cleaner shop overall
Lower energy consumption vs. full-bed extraction

Enclosed cutting area with camera monitoring on the HPM platform

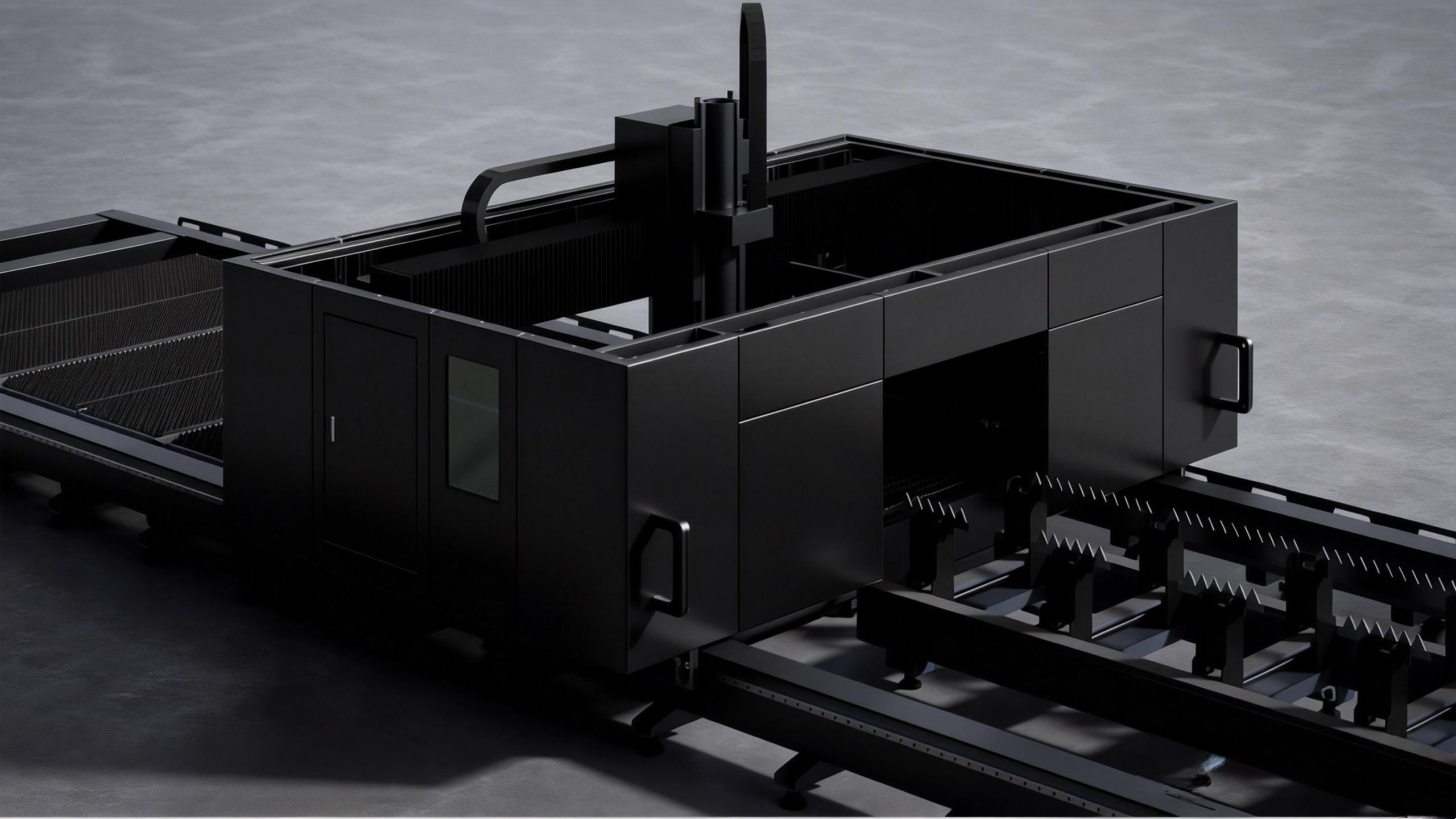

Cutting Area Protection & Visual Monitoring

Protective sheet metal enclosures line the beam and cutting area, backed by heat-resistant protective panels engineered to withstand sparks, slag splash, and radiant heat.

‍Integrated industrial cameras position on the cutting area, so operators monitor cutting conditions in real time without opening covers or approaching the cutting zone.

Why it matters:

Real-time visual process verification without safety compromise
Faster setup verification and troubleshooting
Beam-structure components stay protected during high-power, thick-plate work

Safety light curtain field across the machine access area

High-Sensitivity Safety Light Curtains

Light curtains mount at the front and rear of the crossbeam. They create an invisible protective field across the access area: break the beam during motion, and the machine stops instantly.

Why it matters:

Real personnel protection during loading, unloading, and inspection
Engineered for shop-floor conditions: reliable detection despite vibration, dust, ambient light
Layered into the full safety architecture alongside physical guarding and interlocks
Supports documented safety compliance for procurement sign-off

Sealed IP67-rated motion components on the HPM machine

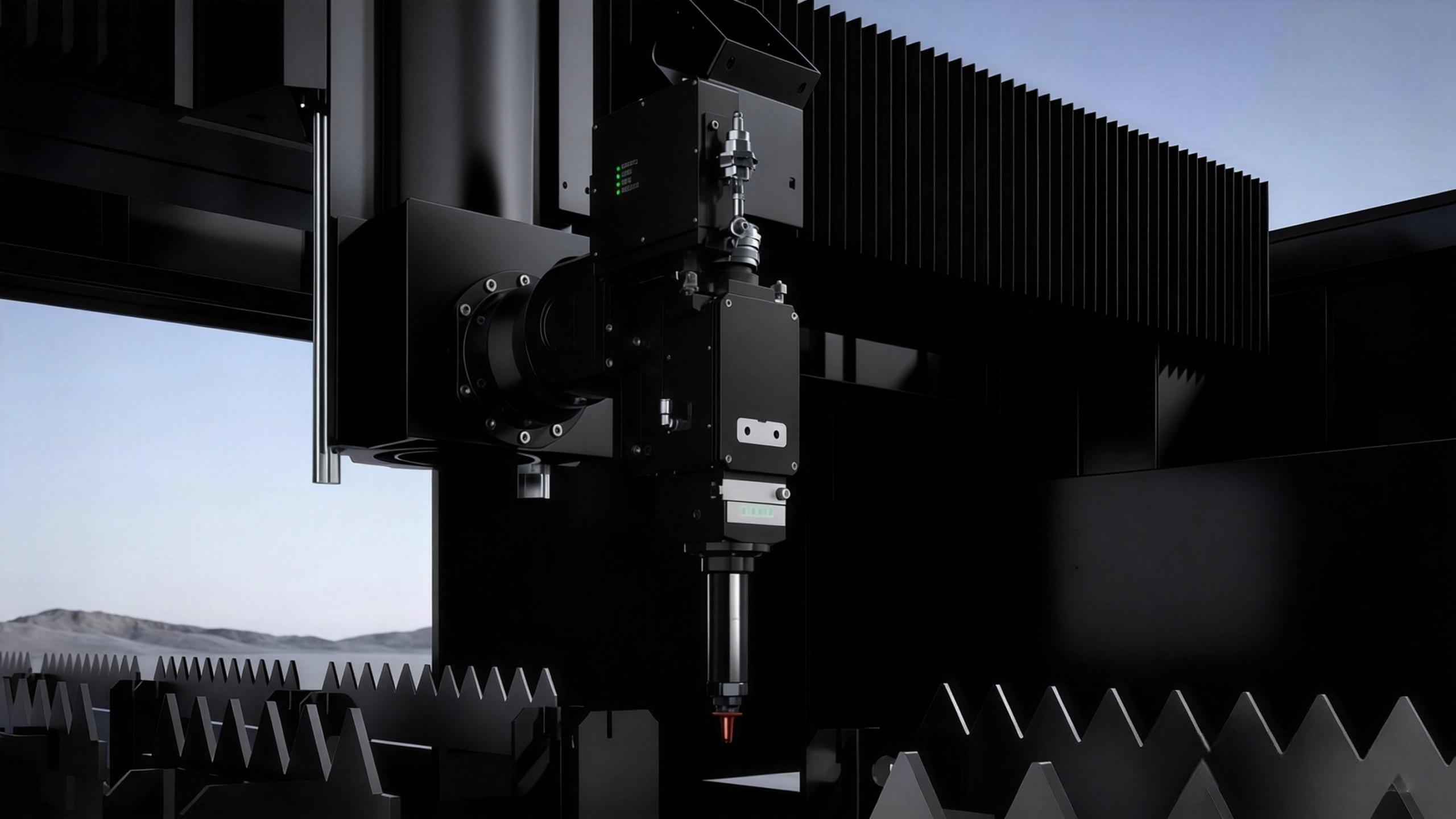

IP67 (IEC 60529) Protection & Low-Maintenance Design

Key motion and electrical components are sealed for high ingress protection against dust, metal particles, and moisture.

Why it matters:

Long uninterrupted production runs: minimal contamination-related downtime
Sealed internal cabling protects electrical connections from debris and mechanical interference
Less frequent lubrication, grease replacement, or routine cleaning of enclosed components
Engineered to operate reliably with minimal intervention

Replacing a Beam Line, or Adding One?

Most structural shops evaluating a profile laser are really weighing it against the drill-line-plus-saw workflow they already run, or against a beam line they were about to buy. The honest comparison is job-mix specific: what your copes, holes, bevels and marking actually cost you today, against one program and one setup on a profile laser.We wrote the comparison out in full: beam line vs laser profile processing.

What This Means for Your Structural Shop

You're buying integrated profile + plate processing with the bevel prep, the thermal compensation, and the safety architecture a structural fabricator actually needs. Every component above is on the spec sheet, and every component is something our engineers can walk you through in person.

Bring your drawings and a representative section. We'll run a live structural demo and review cycle time, quality, and workflow fit — head-to-head against what you're doing today.

Book a Structural Demo

Download the Technical Datasheet

HPM Structural Profile Cutting System

The published specifications for this platform: dual station, AB-axis bevel head, modular bed and IP67 (IEC 60529) motion.

TPC Tube and Profile Laser Cutting System

If round and square tube dominate your mix rather than beams and channel, look at the chuck-based platform.

For round and square tube, see tube and profile laser cutting machines

FLC Fiber Laser Sheet Cutting System

The dedicated sheet platform, for connection plates and flat work running alongside profile prep.

For flat sheet cutting, see fiber laser cutting machines

SUPPORTED FROM LUMBY, BC

Every platform carries the same commitments: parts stocked in Lumby, BC rather than overseas, a 24/7 Canadian hotline, and 48-hour on-site response across Western Canada. Financing is available on every system — see equipment financing.

For service details, see service and support

Profile Laser Cutting Machine FAQs

What is a profile laser cutting machine?

A fiber laser platform built for structural sections rather than flat sheet. The Vantix HPM is dual-station: the front station cuts H-beam, I-beam, channel and angle; the rear station cuts flat sheet and plate synchronously in the same footprint.

Can it cut bevels for weld prep?

Yes. The BLT442P cutting head with AB-axis runs a continuous ±45° bevel range and produces straight cuts, V-cuts, Y-cuts and weld-joint prep directly off the machine, which removes the secondary grinding step.

How long can the bed be?

The machine bed is modular, built from 20 ft sections and extendable up to 200 ft, so capacity is configured to the sections your shop actually runs.

What support does Vantix provide in Canada?

Every system includes a 2-year warranty, 5-day on-site training and a 1-year spare parts kit, with parts stocked in Lumby, BC, a 24/7 Canadian hotline and 48-hour on-site response across Western Canada.
